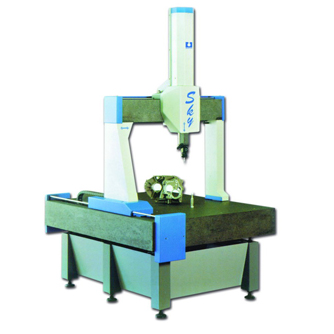

Standard small to medium measuring volumn CMM for general workshop measuring. SKY CMM is a typical choice for normal usage of part measuring especially for medium or small trunk, ordinary workpeice. Everywhere within the plant you can find a demand for this kind of measuring demands.
A lot of advanced CAD technology include FEA and module analysis while this machine was designed, which is very efficient to lowdown the influence from distortion, vibration and temperature changing. With error compensation technic this machine has many ways for user to keep its accuracy after a period of work.
Both manual or CNC was available. With software supporting, SKY can do CCD scanning, Laser scanning for reverse engineering or surface measuring.
Structureㄩ
StructureㄩMoving bridge
ControllerㄩUCC general controller from RENISHAW UK or WPC2030 from PANTEC
ProbeㄩFull range probe from RENISHAW UK was supported.
SoftwareㄩXDMIS(OpenDMIS) from USA or WINCOM
ScaleㄩHigh precision metal reflect scale with resolution of 1-0.5-0.1µm
DrivingㄩDC Motor
Guidway and worktableㄩBlack granite
MovingㄩAir bearing
Z Balanceㄩadjustable pneumatic
Speedㄩ24M/min
Air Consupmtionㄩ6 bar˙300L/min
Working Temperatureㄩ20㊣2⊥˙1⊥/h˙1⊥/m˙2⊥/24h˙
Powerㄩ220V㊣10%˙50Hz㊣10%
humidityㄩ≒80%
|
|
|
|
|
